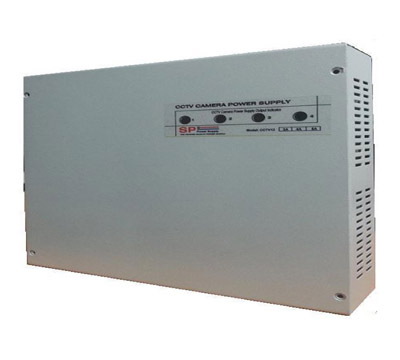

CCTV Camera Power Supply
Model: CCTV123, CCTV124 & CCTV128
Features
Universal Input : 100V-240V ac 50/60 Hz (1 phase)
Protection: Short Circuit, Overload & Over Volatge
Load Protecion : By glass fuse
Cooling : Natural Cooling
Tested : 100% full load burn in test
Standard three LED's for status indication
Green LED : Load Output (Load output available)
Applications
Environmental
Temperature : -40 to 85 degC
Humidity : 20 to 90 % non-condensing
Enclosure
Mild sheet metal treated with chemical rust inhibitor and rust resisting primer coat
Finishing: Epoxy powder coated

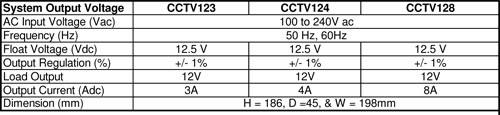

DC Output Voltage & Current
12Vdc 3A, 4A & 8A
Safety & EMC
Safety Standard : UL60950-1
Withstanding Voltage : Input 3KVAV, Output 0.5KVAC
Isolation Resistance : 100Mohm 500Vdc
EMC Emission : EN55022 ClassB, EN61000-3-2.-3
EMC Immunity : EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, Light industry level.
MTBF
MTBF : 394Khours at 25 degree celcuis
